Αντανακλαστικό φύλλο διαμαντιού
Created with Pixso.

Diamond Grade Reflective Sheeting with Full-Cube Prismatic Construction and ASTM D4956 Type XI Compliance

Diamond Grade Reflective Sheeting with Full-Cube Prismatic Construction and ASTM D4956 Type XI Compliance

Επωνυμία: LU
Αριθμός Μοντέλου: LZT9800
Ελάχιστη Ποσότητα Παραγγελίας: 1 ρολό
τιμή: Διαπραγματεύσιμα
Όροι πληρωμής: L/C,D/A,D/P,T/T,Western Union
Δυνατότητα Προμήθειας: 10000 ρολό/μήνα
Λεπτομέρειες
Τόπος καταγωγής:
Κίνα
Αξία αντανάκλασης:
Βαθμός διαμαντιού
Κατηγορία Επιδόσεων:
EN12899 Κατηγορία RA2/ASTM D4956 Τύπος XI
Αντανάκλαση της Κατασκευής:
Πρισματικό πλήρους κύβου
Τύπος κόλλας:
κόλλα ευαίσθητη στην πίεση (PSA)
Εγγύηση:
10 χρόνια
Επιφανειακό υλικό:
Ακρυλικό
Αντοχή στις καιρικές συνθήκες:
Εξοχος
Επιλογές μεγεθών:
Διατίθεται σε ρολά και φύλλα διαφόρων μεγεθών
Συσκευασία:
χαρτοκιβώτιο
Προσδιορισμός:
48 in*50 yd;1,22*45,7m
Συσκευασία λεπτομέρειες:
1 ρολό/χαρτοκιβώτιο
Δυνατότητα προσφοράς:
10000 ρολό/μήνα
Επισημαίνω:

10 years warranty Diamond Grade Reflective Sheeting

,

Full-cube prismatic Microprismatic Reflective Sheeting

,

ASTM D4956 Type XI Retroreflective Sheeting

Περιγραφή του προϊόντος
Diamond Grade Reflective Sheeting 9800 White
Premium diamond-grade microprismatic reflective material engineered for high-speed traffic environments and high-safety-level signage systems.
Technical Specifications
Item Specification
Reflective Grade Diamond Grade
Reflective Technology Sealed microprismatic retroreflection
Typical Service Life 10 years (outdoor)
Thickness (without liner) 0.43 - 0.48 mm
Adhesive Type Pressure-sensitive adhesive (PSA)
Substrate Compatibility Aluminum and standard sign substrates
Operating Temperature −30 °C to +65 °C
Application Temperature ≥ +10 °C
Weather Resistance UV, moisture, and temperature resistant
Surface Properties Dirt-resistant, easy to clean
Available Colors White, Yellow, Red, Blue, Green (customizable)
Applicable Standards ASTM D4956 Type XI
Utilizing advanced full-cube microprismatic retroreflection technology, the sheeting delivers exceptional brightness and superior visibility, even under nighttime conditions, rain, fog, and complex or low-light environments. Designed to meet the demanding requirements of permanent traffic control and safety applications, 9800 Diamond Grade Reflective Sheeting ensures clear and reliable recognition of road information at long viewing distances and wide entrance angles, significantly enhancing driver awareness and overall roadway safety.

Product Highlights
  • Diamond-Grade Microprismatic Construction
    Incorporates a high-density microprismatic structure that provides significantly higher retroreflectivity than engineering-grade and high-intensity reflective sheetings.
  • Excellent Wide-Angle Performance
    Maintains outstanding visibility at wide entrance and observation angles, ensuring clear recognition from long distances and improving early warning effectiveness for drivers.
  • Outstanding Outdoor Durability
    Engineered for long-term outdoor use, offering excellent resistance to UV exposure, weathering, and temperature extremes without fading, cracking, or delamination.
  • High Installation Efficiency
    Features a smooth, uniform surface that allows easy cutting, printing, and application, improving fabrication efficiency and reducing installation time.

Applications
  • Highway and expressway traffic signs
  • Urban road and arterial roadway signage
Diamond Grade Reflective Sheeting Manufacturer - LU
LU is a professional manufacturer specializing in diamond grade microprismatic reflective sheeting, dedicated to providing high-performance reflective solutions for traffic safety and industrial signage worldwide. With a strong focus on technology innovation, quality consistency, and long-term reliability, LU has established itself as a trusted supplier in the global reflective materials industry.

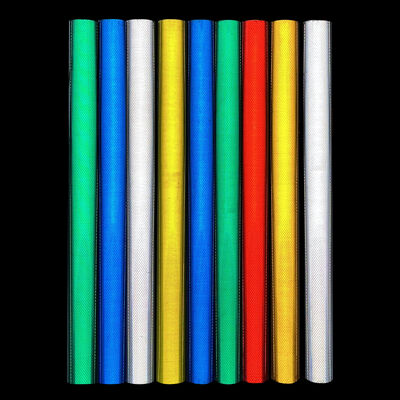

Diamond Grade Reflective Sheeting with Full-Cube Prismatic Construction and ASTM D4956 Type XI Compliance 0

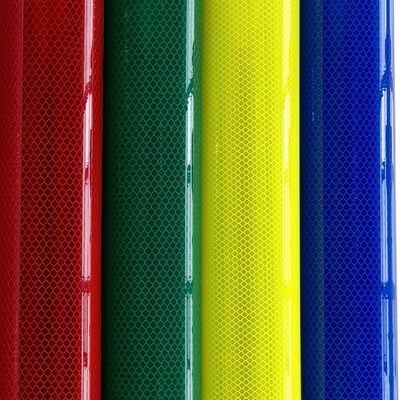

 Diamond Grade Reflective Sheeting with Full-Cube Prismatic Construction and ASTM D4956 Type XI Compliance 1
